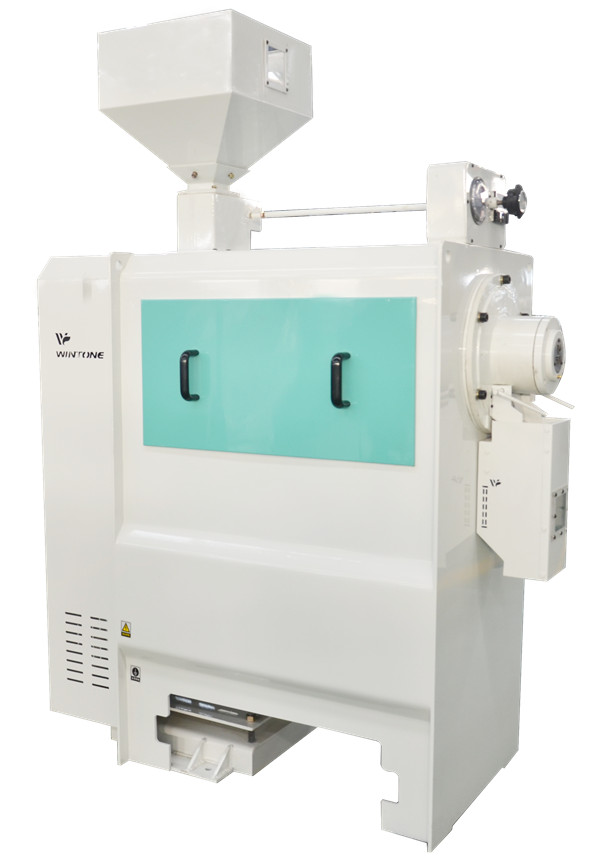

Small red bean peeling machine can effectively remove the moldy skin of small red bean and other beans, such as soybean, mung bean, lentil, pea, broad bean, navy bean, black eye bean, butter bean, sword bean, kidney bean and so on. Small red bean peeling machine uses high-speed rotating emery roller to cut and rub the bean bran continuously, and the process destroys the bonding strength between small red bean kernels and cortex, which can produce qualified peeled small red bean kernels. Meanwhile, it can make the black impurities separated. It has highly efficient air suction chamber inside to collect the bean cortex from peeling process. Small red bean peeling rate can reach 95% above.
Small red bean peeling machine can peel different beans. Bean peeler can work independently as a single machine and also can work in the processing plant which consists of other sections, such as cleaning, destoning, brushing, bean flour milling and so on.
Small red bean peeling machine is composed of charging device, spiral conveyor, peeling chamber, transmission gear, aggregate bin, discharge device and dust catcher.
Small red bean peeling machine features:
Easy operation and maintenance
Scientific and reasonable design
Reliable peeling performance, low peeling noise
Strong negative pressure peeling and hulling ability, less broken pieces, strong ability in bran removing.
Wide usage in large, medium and small edible enterprises, corn and grain processing plants and feed enterprises.
Small red bean peeling machine parameter:
(Letter A means external air blower. Letter B means internally installed air blower)
|
Model |
Emery Roll Diameter (mm) |
Emery Roll Length (mm) |
Spindle Speed （r/min） |
Yield （t/h） |
Power （kW） |
Air Volume （m³/h） |
Size (L*W*H) (mm) |
|
MTPS-18D/A |
Φ180 |
660 |
1300 |
1～1.5 |
22 |
1370×700×1900 |
|
|
MTPS-18D/B |
Φ180 |
660 |
1300 |
1～1.5 |
22 |
1500-1800 |
1410×1220×2030 |
|
MTPS-25D/A |
Φ240 |
660 |
1050 |
2-3 |
30 |
1515×660×2100 |
|
|
MTPS-25D/B |
Φ240 |
660 |
1050 |
2-3 |
30 |
1800-2100 |
1515×1220×2100 |
Workshop Processing for Bean Bran Removing Machine:
Shown at Exhibition Hall:
Bean bran removing machine end products:
Peeled Lentil:
Peeled Mung Bean:
Peeled Chickpea:
Peeled Peas:
Application Overseas (Part) :
Canada 120T/Day Lentil Peeling Project:
24T/Day Mung Bean Peeling Line in Thailand:
2T/Hour Lentil Peeling Line in Russia:
1T/Hour Lentil Peeling Line in Ethiopia:
Pakistan 20 Sets of Chickpea Peeling Machines Delivery:
