Bean introduction:
Beans have many varieties. The main bean varieties are soybean, black soya bean, mung bean, red bean, broad bean, lentil and so on. Bean contains rich nutrition ingredients. It is low in sodium, and very low in saturated fat and cholesterol. It is also a good source of protein, thiamin, riboflavin, niacin, vitamin B6, calcium, iron, magnesium, phosphorus, potassium and copper, and a very good source of dietary fiber, vitamin A, vitamin C, vitamin K, folate and manganese. Beans can be used to cook soup or porridge, and can also be peeled into bean kernels or milled into bean flour for futher utilization. Peeled beans not only have better taste, but also enhance beans edible quality.
Bean peeler introduction and working principle:
Bean peeler is designed to peel bean husks and improve bean edible and utilization value. It uses high-speed rotating emery roller to cut and rub the bean cortex continuously, and the process destroys the bonding strength between bean endosperm and bean embryo, which can produce qualified peeled beans. It has highly efficient air suction chamber inside to collect the bean cortex from peeling process. The bean peeling rate can reach 95% above. It is composed of charging device, spiral conveyor, peeling chamber, transmission gear, aggregate bin, discharge device and dust catcher. Bean peeler can work independently as a single machine and also can work in the processing plant which consists of other sections, such as cleaning, destoning, brushing, bean flour milling and so on.
Bean peeler value:
Bean peeler can enhance the edible quality of the bean products and the comprehensive utilization value of bean products.
Bean peeler can peel the following beans: soybean,broad bean,pea,mung bean,kidney bean,black soya bean,sword bean,pigeon pea,chickpea,lentil,cowpea,small red bean,butter bean,navy bean,phaseolus coccineus and so on.
Bean peeler features:
Scientific and reasonable design
Reliable peeling performance, low peeling noise
Easy dismounting and maintenance
Strong negative peeling and hulling ability, less broken pieces, strong ability in bran removing.
Wide usage in large, medium and small edible enterprises, corn and grain processing plants and feed enterprises.

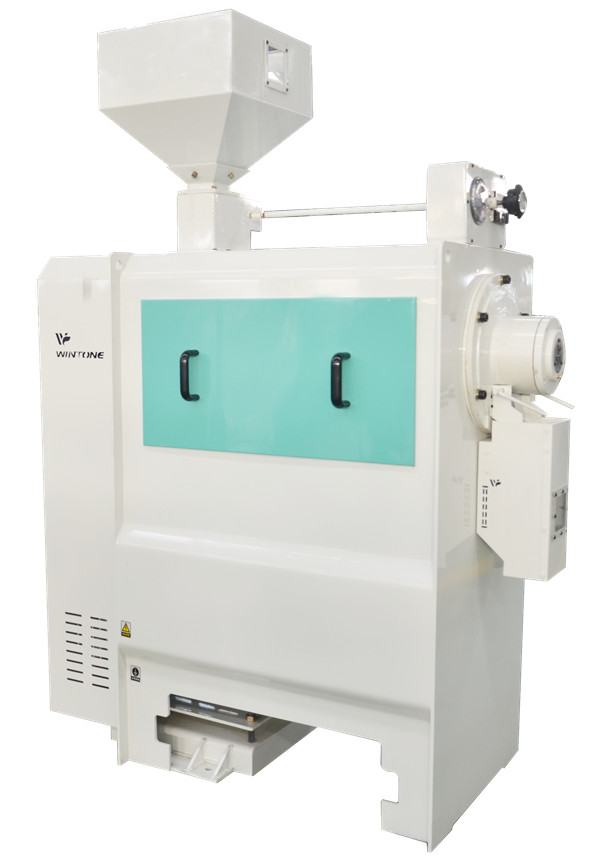

MTPS bean peelers technical parameter: (Letter A means external air blower. Letter B means internally installed air blower)
|
Model |
Emery Roll Diameter (mm) |
Emery Roll Length (mm) |
Spindle Speed （r/min） |
Yield （t/h） |
Power （kW） |
Air Volume （m³/h） |
Size (L*W*H) (mm) |
|
MTPS-18D/A |
Φ180 |
660 |
1300 |
1～1.5 |
22 |
1370×700×1900 |
|
|
MTPS-18D/B |
Φ180 |
660 |
1300 |
1～1.5 |
22 |
1500-1800 |
1410×1220×2030 |
|
MTPS-25D/A |
Φ240 |
660 |
1050 |
2-3 |
30 |
1515×660×2100 |
|
|
MTPS-25D/B |
Φ240 |
660 |
1050 |
2-3 |
30 |
1800-2100 |
1515×1220×2100 |
Workshop Processing for Bean Peeler:

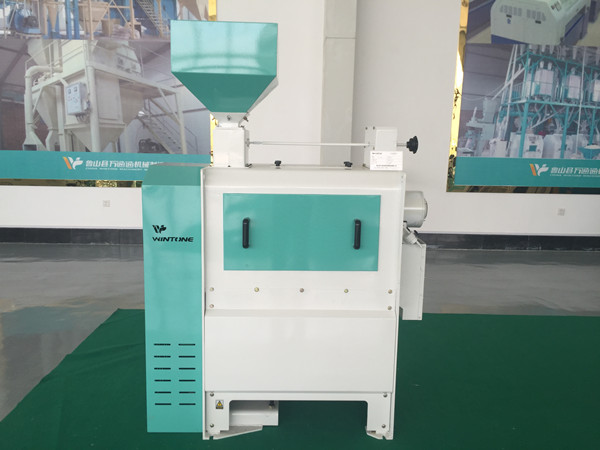

Shown at Exhibition Hall:
Bean peeler end products:
Peeled Lentil:
Peeled Mung Bean:
Peeled Chickpea:
Peeled Peas:
Peeled Soybean:
Bean Peelers Application Overseas (Part) :
Canada 120T/Day Lentil Peeling Project:
24T/Day Mung Bean Peeling Line in Thailand:
2T/Hour Lentil Peeling Line in Russia:
2T/Hour Lentil Peeling Line in Kazakhstan:
1T/Hour Lentil Peeling Line in Ethiopia:
2T/Hour Lentil Peeling Line in Ethiopia:
Pakistan 20 Sets of Chickpea Peeling Machines Delivery:
